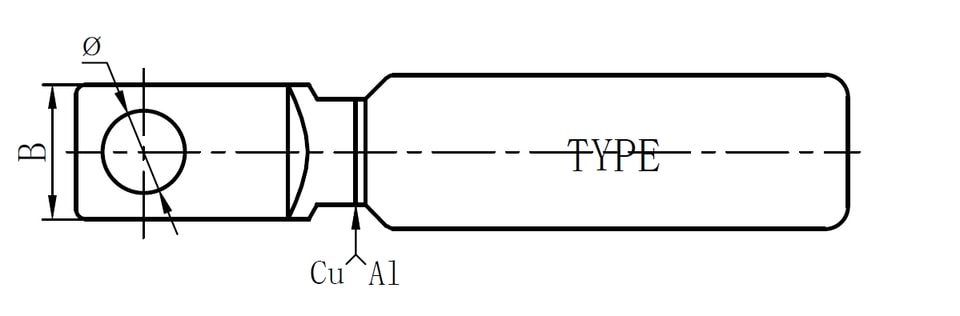

DTL-2F биметаллический кабельный наконечник

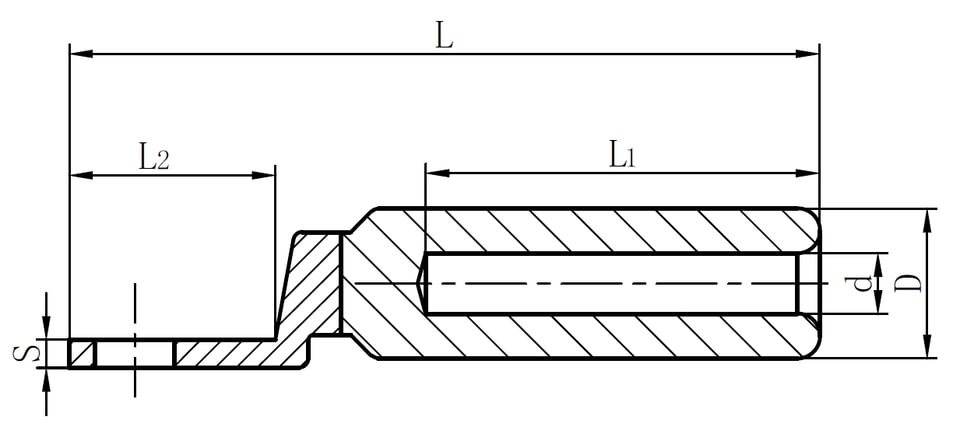

Тип

Φ

D

d

L1

L2

B

S

L

DTL-2F-16

8.5

16

6.3

42

22

14

3

80

DTL-2F-25

8.5

16

7.3

42

22

14

3

80

DTL-2F-35

8.5

16

8.5

42

22

14

3

80

DTL-2F-50

10.5

20

9.5

50

24

17

4

90

DTL-2F-70

10.5

20

11.5

50

24

17

4

90

DTL-2F-95

10.5

20

13.5

50

24

17

4

90

DTL-2F-120

10.5

25

15.1

60

28

21

4.5

110

DTL-2F-150

10.5

25

16.5

60

28

21

4.5

110

DTL-2F-185

13

32

18.5

60

32

25

5.5

120

DTL-2F-240

13

32

20.7

60

32

25

5.5

120

DTL-2F-300

13

34

23.5

65

38

31

6

130

DTL-2F-400

13

40

26.2

80

38

31

7.5

150

DTL-2F-500

13

40

29.2

80

38

31

7.5

150
